Stinner Refugio Select

Today, California’s Stinner Frameworks announces an expansion to its Select program with the Refugio Select, offering another stock bike model at a more affordable price point. Let’s check out this capable 700 x 50 mm gravel platform’s offerings…

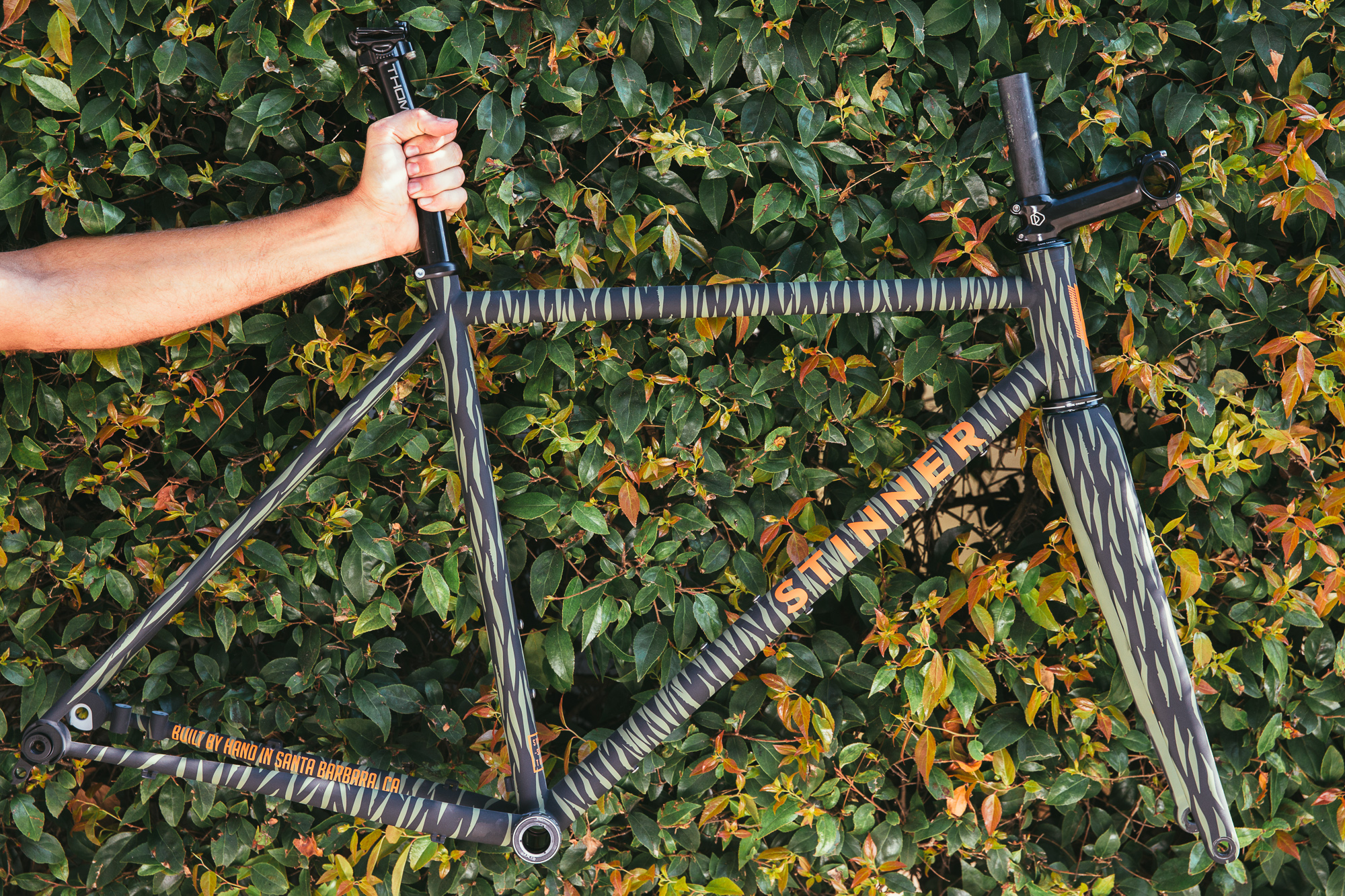

Refugio Select Gravel Bike

The Refugio Select embodies the spirit of adventure and challenge, drawing inspiration from the rugged, winding terrain of Refugio Road in Santa Barbara, CA, home of Stinner Frameworks. It is designed for versatility and endurance, thriving on all surfaces, from steep climbs to rough descents.

Now available as part of the Stiner Select line, the Columbus Zona/Life tubing blend offers a responsive and smooth ride, built to handle even the most challenging routes. Every Refugio Select is fabricated, painted, and assembled in Santa Barbara, CA, with clearance for 50 mm tires, UDH compatibility, and a component package prioritizing reliability and serviceability.

Geometry

Some notable integers are the healthy stack numbers and a size-specific geometry. Each size Refugio Select is meant to optimize the ride quality for its owner, no matter their frame size.

Refugio Select Quick Hits:

Material // Columbus Zona/Life Steel Tube Set
Finish // Durable Powder Coat
Dropouts // Stinner UDH 160mm Flat Mount Steel Dropouts
Drivetrain Compatibility // Mechanical 1x (External full length housing) / SRAM AXS – Transmission/Full Mount compatible
MAX Tire Clearance // 700 x 50mm
MAX Tire Clearance w/ Fenders // 700 x 45mm
MAX Chainring Clearance // 1x: 42t (47.5mm chainline)
Dropout Spacing // 142 x 12mm
Rear Axle // 166mm – M12 x 1.0 – 15mm threaded portion
Brake Mount // Flat Mount 160mm
MAX Rotor Size // 160mm
Brake Routing // External w/bolt-on and zip-tie guides
Seatpost Diameter // 27.2mm
Seatpost Clamp Diameter // 30mm
Bottom Bracket // BSA 68mm wide shell
Headtube Diameter // 44mm Internal Top and Bottom
Headset Specs // Upper: ZS44/28.6 – Lower: EC44/40
Mounts // Fender Mounts – 3 bottle cage locations
