SRAM’s revolutionary X-Sync technology has trickled down to a more affordable group. GX is their newest MTB group and it spans everything from a 1×11 with X-Sync ($564 USD trigger, $573 grip) to a 2×10 ($511 USD trigger) or 2×11 ($661 USD trigger, $677 grip). It’s an all-encompassing platform, for everyone, everywhere.
The 1×11 system will hit retail shops in July, with the 2×10 in June and 2×11 in August. Check out specs for the GX 1×11 with X-Sync below and see more details for the other offerings at SRAM.

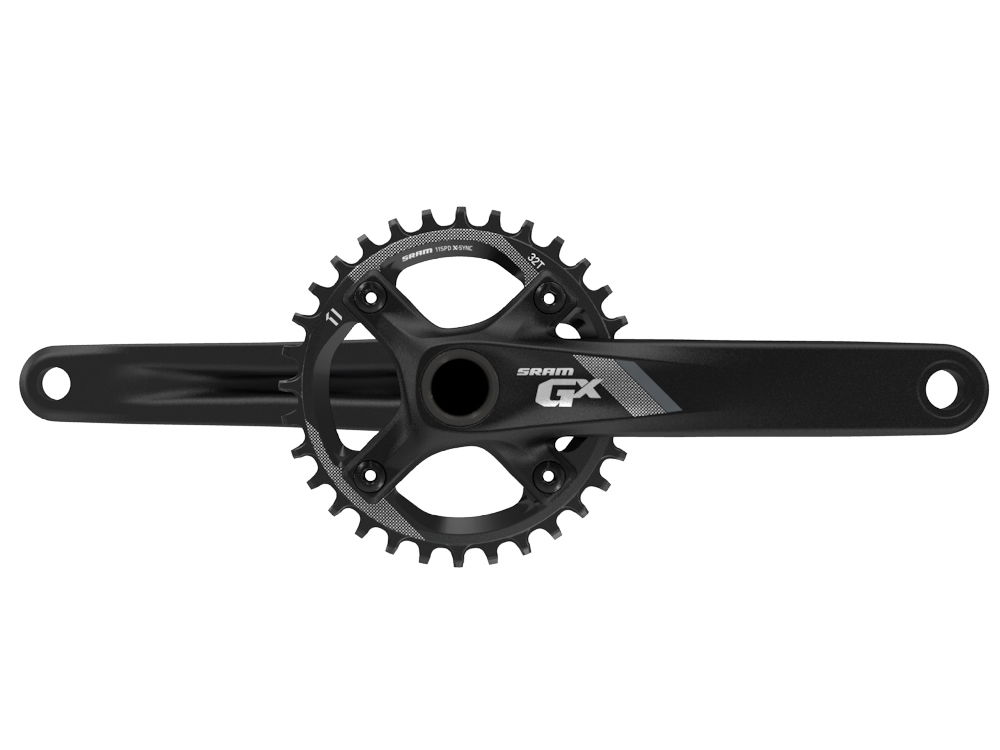

GX 1x CRANKSET
The SRAM GX crankset delivers consistent performance every time out. Featuring SRAM’s
X-SYNC™ tooth profile, the GX crankset is engineered for complete chain control. Each
tooth’s thickness is CNC machined to work seamlessly with the chain’s inner and outer
links. And with five available chainrings (30-32-34-36-38), you can personalize your
gear range to match the way you ride.
__
FEATURES / BENEFITS
Open Core Technology AL (GX-1400 Crankset)
6000 series AL (GX-1000 Crankset)
CNC machined 7075, two-tone anodized X-SYNC™ chainring (30-32-34-36-38)
Bottom bracket configurations: PressFit 30, BB30, GXP, and PressFit GXP
Chainring guard option
Crank lengths: 175, 170
Colors: Black, Red
24 and 30mm options
Boost™ 148 compatible
Technologies: X-SYNC™
Weight: 680g (GX-1400, GXP, 175mm, 32t); 720g (GX-1000, GXP, 175mm, 32t)
XG-1150 FULL PIN™ CASSETTE
FULL PIN™ technology uses eleven lightweight, stamped steel cogs held together with 123 high-strength stainless steel pins. The result: a cassette that’s extremely light, durable and equipped with SRAM’s super wide 10-42 gear range that’s a perfect fit for any ride. The open design similar to our X-DOME™ cassette aids in mud clearance, giving you cleaner shifting performance and longer component life.
__
FEATURES / BENEFITS
10-42T range
XD™ driver body compatible
Technologies: FULL PIN™, XD™ driver body, JET™
Weight: 394g
GX 1×11 X-HORIZON™ REAR DERAILLEUR
The SRAM GX X-HORIZON™ rear derailleur is engineered for smooth, reliable shifting action—from the larger upper pulley offset to the 12-tooth X-SYNC™ pulley wheels. By eliminating unwanted chain movement, X-HORIZON™ shifts faster, puts an end to ghost shifting and reduces shift force and chain slap. And with CAGE LOCK™ technology, wheel removal and installation are easier than ever.
__
FEATURES / BENEFITS
X-HORIZON™ design reduces shift force, ghost shifting and chain slap
12-tooth X-SYNC™ pulley wheels
Large upper pulley offset automatically adjusts chain gap
Sealed cartridge bearings
Aluminum cage
Colors: Black, Red
Technologies: X-HORIZON™, X-ACTUATION™, X-SYNC™, ROLLER BEARING CLUTCH™, CAGE LOCK™
Weight: 265g
GX 11-SPEED TRIGGER SHIFTER
Get sharp, dependable shifting with the SRAM GX X-ACTUATION™ trigger shifter. Built for precise and swift shifting across our wide range 11-speed cassette, the GX trigger shifter brings championship technology to everyone.
__
FEATURES / BENEFITS
SRAM 1x™ X-ACTUATION™ for precise and dependable 11-speed performance
Multi-position mounting
MatchMaker™ compatible
Aluminum pull lever
Discrete clamp
Colors: Black, Red
Technologies: X-ACTUATION™, MatchMaker™ Integrated
Weight: 122g
